Dump Tipping Trailers For ATV Hydraulic Pump

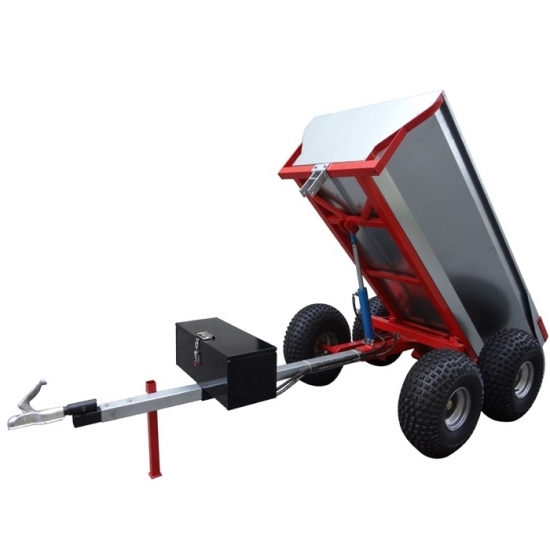

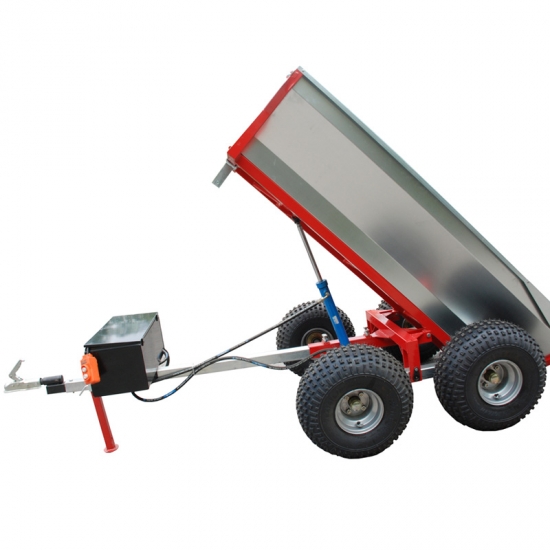

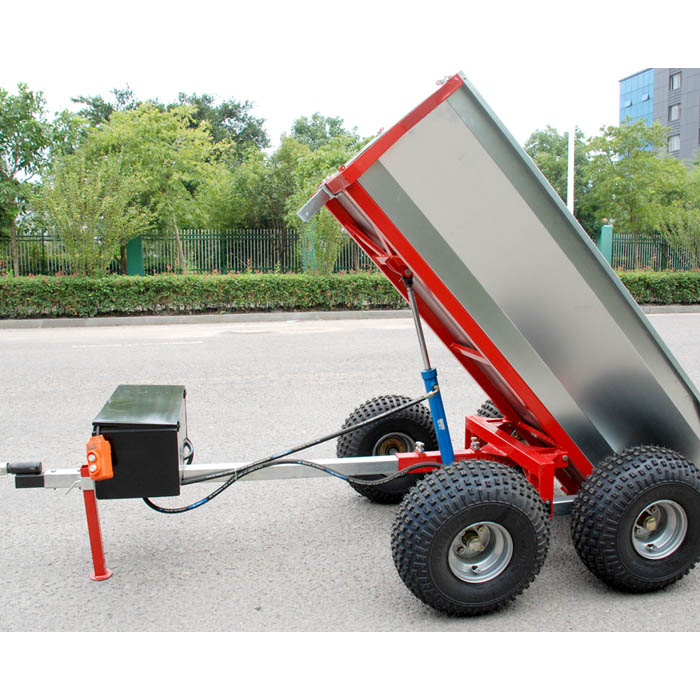

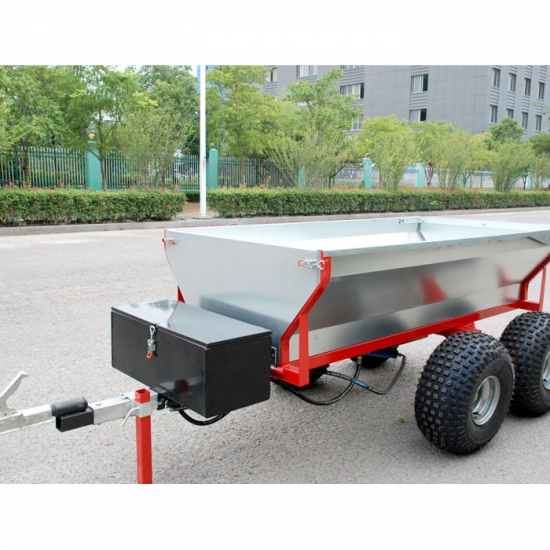

XTM OD-12 hydraulic pump tipping ATV Garden trailer with heavy duty but light weight, wide flotation tyres and high ground clearance for off road use.
OD-12 special equipped with external electro-hydraulic pump, gives you a more easy tipping.

Removable front & rear tail gate and easy central tipping base further enhance their cargo handling capability.
With a 800kgs load capacity on a regular/daily basis.
Additional bracing struts, Galvanised steel mesh cage and jack, spare tyre also optional.
Powder coating (colors optional), plating or galvanizing Surface Treatment optional.
Suitable for a variety of uses including: Forestry, Farming, Garden, Equestrian, ATV&UTV tow behind.


Key Features:

Hydraulic pump helps you a more easy lift up
Tandem axle atv garden tipping trailer
1.5mm galvanized sheet
Box size: 1500x1000x450mm
Easy Lift Tipping
Tail Gate Removable - At Front And Back
800kgs load capacity
Off road use only

The Specification About Dump Trailers

Model No.: XTM-OD-12
Material: Q235
Full Size: 3120x1370x940mm
Box Size: 2000x1000x450mm
Box Volume: 0.7m3
Draw Bar Length: 950mm
Draw Bar Material: 50mm x50mm x2.5mm
Box Material: 1.5mm galvanized sheet
Load Capacity: 800kg
Tyre: 22 x 11-8(optional)
Net weight: 235kgs
Coupler: ø50mm, 2000kg
Surface Finish: Powder coating (colors optional), plating or galvanizing
Packing: Bulk or iron frame, cardboard packaging
Warranty time: 12 months (not not including tire)

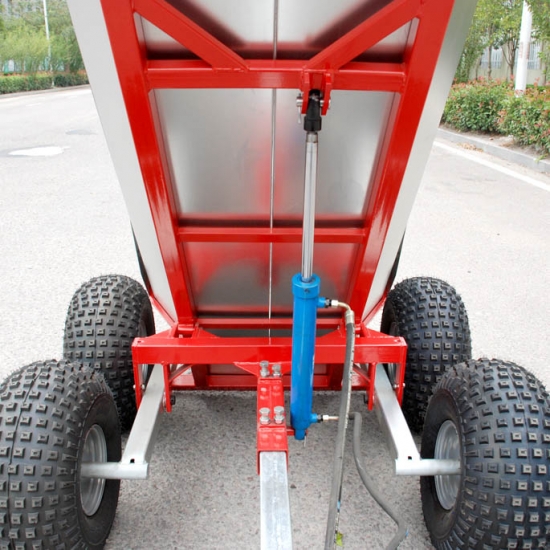

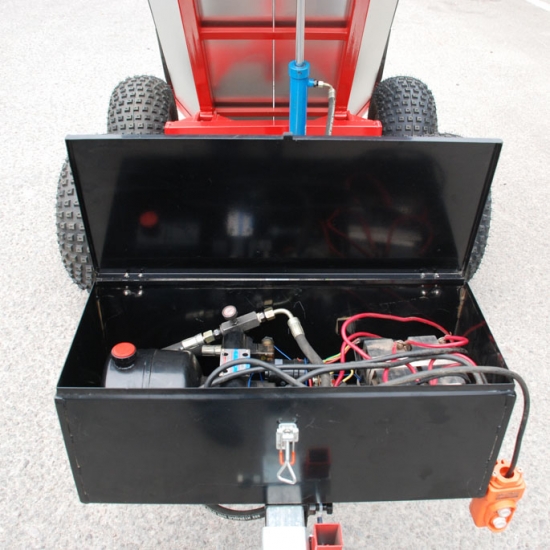

Hydraulic oil pump specification
Pump voltage: 12V

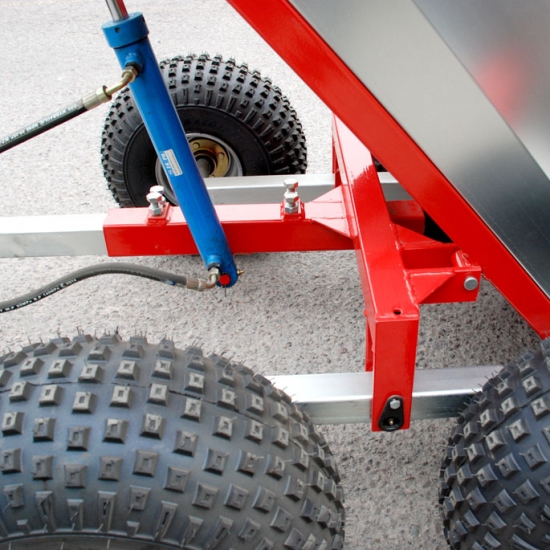

Oil cylinder size: OD: 40mm  ID:25mm
Power: 1.2kw, S3 short time working
Displacement: 0.6cc/r
Pump pressure: 16Mpa
Oil tank capacity: 4L
