Quad UTV Trailer ATV Tow Behind

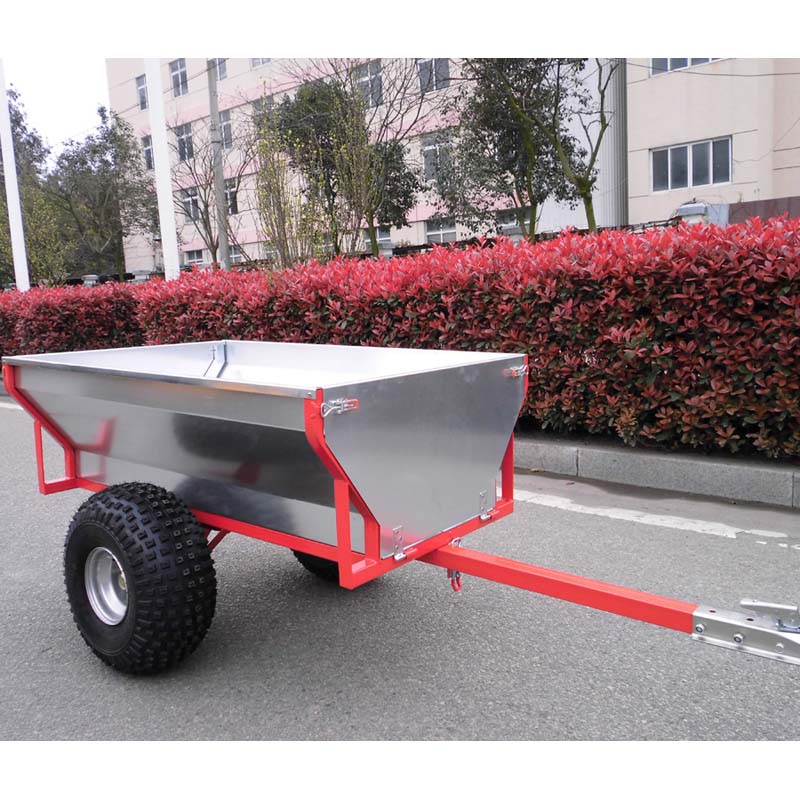

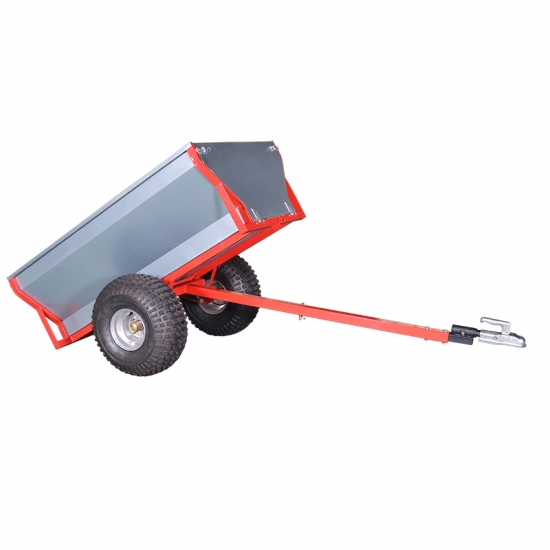

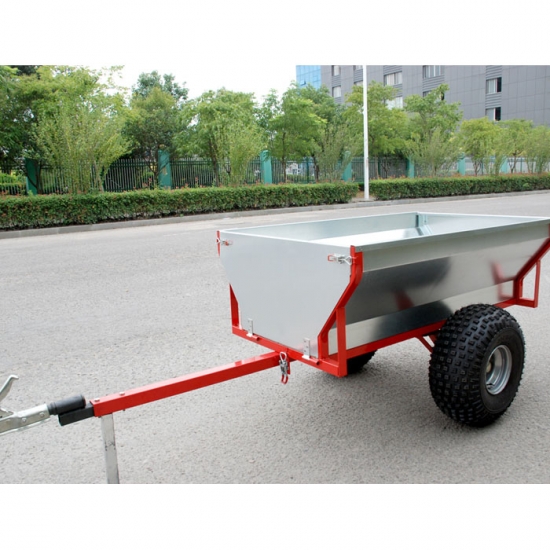

XTM OD-01 is an atv tow trailer with heavy duty but light weight, wide flotation tyres and high ground clearance making them ideal for off road use.
Removable front & rear tail gate and easy central tipping base further enhance their cargo handling capability.

Suitable for a variety of uses including: Forestry, Farming, Garden, Equestrian, ATV&UTV tow behind.
With a 500kgs load capacity on a regular/daily basis.
Additional bracing struts/ side support, Galvanised steel mesh cage and jack, spare tyre also optional.
Powder coating (colors optional), plating or galvanizing Surface Treatment optional.

Key Features:

Single axle atv garden tipping trailer
1.5mm galvanized sheet
Box size: 1500x950x450mm

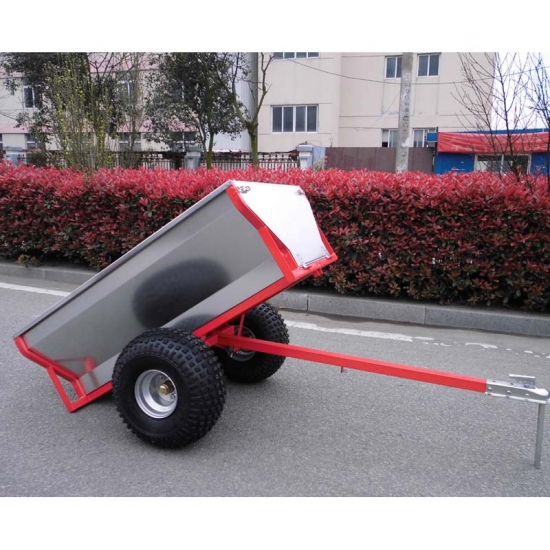

Easy Lift Tipping

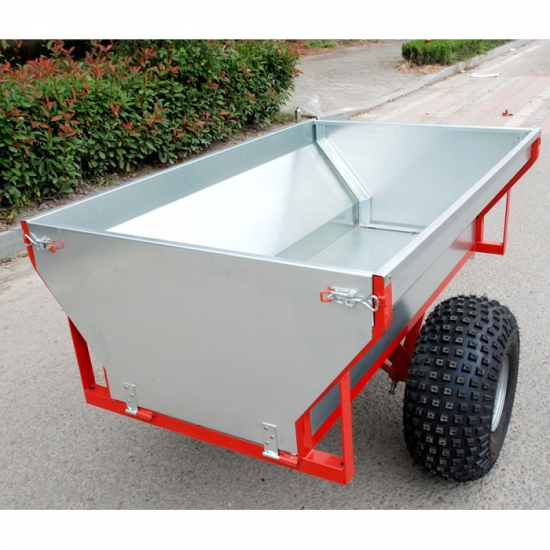

Tail Gate Removable - At Front And Back
Off road use only

The Specification About UTV Utility Trailer

Model No.: XTM-OD-01
Box Size: 1500x960x540mm
Box Volume: 0.7m3
Draw Bar Length: 1200mm
Draw Bar Material: 60mm x40mm x2.5mm
Box Material: 1.5mm galvanized sheet
Load Capacity: 500kg
Tyre: 22 x 11-8(optional)
Coupler: ø50mm, 2000kg
Net Weight: 88kgs
Surface Finish: Powder coating (colors optional), plating or galvanizing
Packing: Bulk or iron frame, cardboard packaging
Warranty time: 12 months (not including tire)
