ATV Timber Trailer Off Road

XTM OT-02 is designed easily converts from a dump box style trailer to a logging trailer.

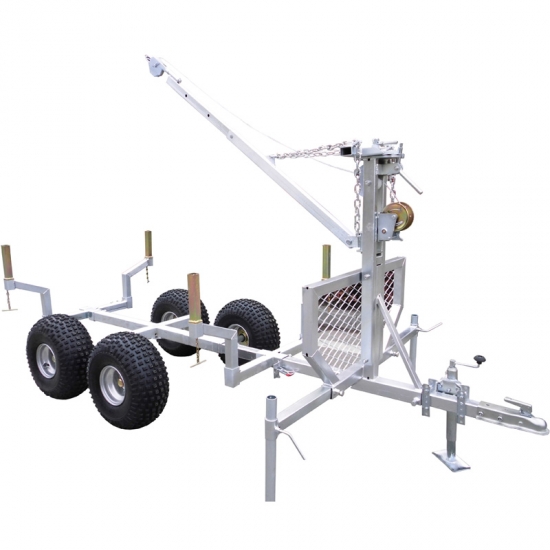

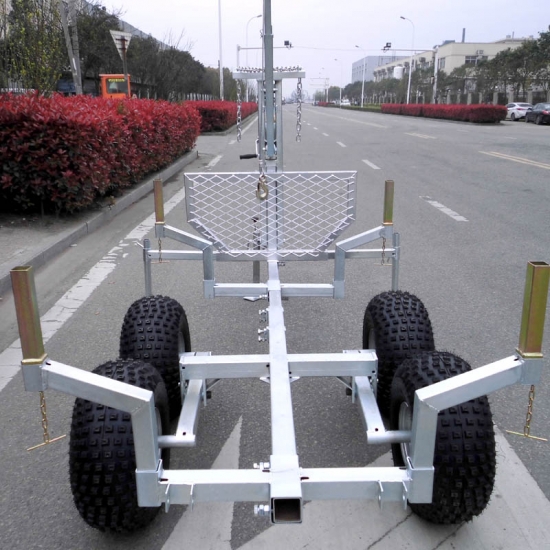

As a atv timber trailer, it’s very easy and effective to load and transport woods with a crane on it. Side stabilizers keep the trailer stable when loading or unloading with the boom lift.

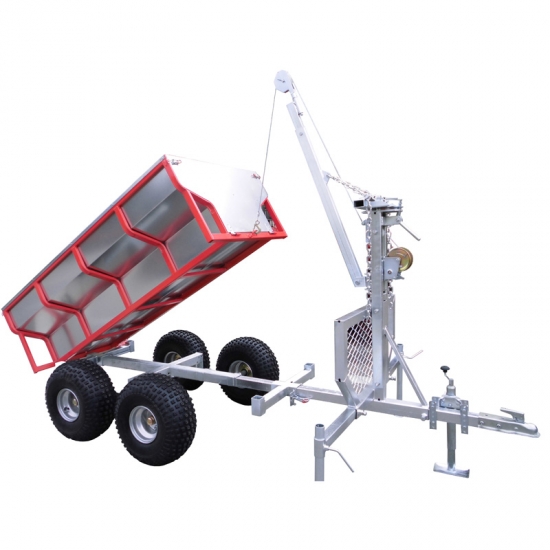

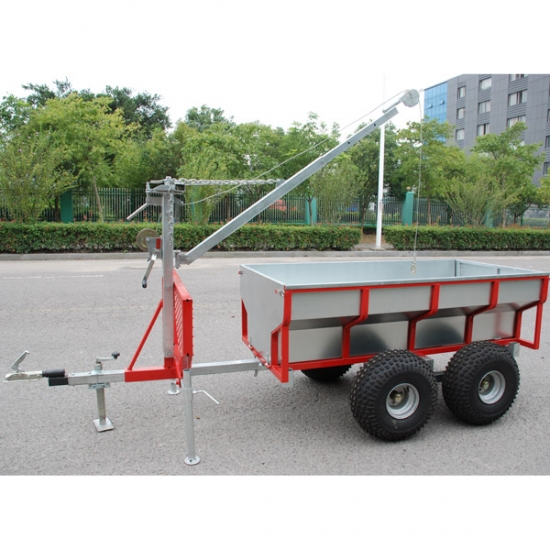

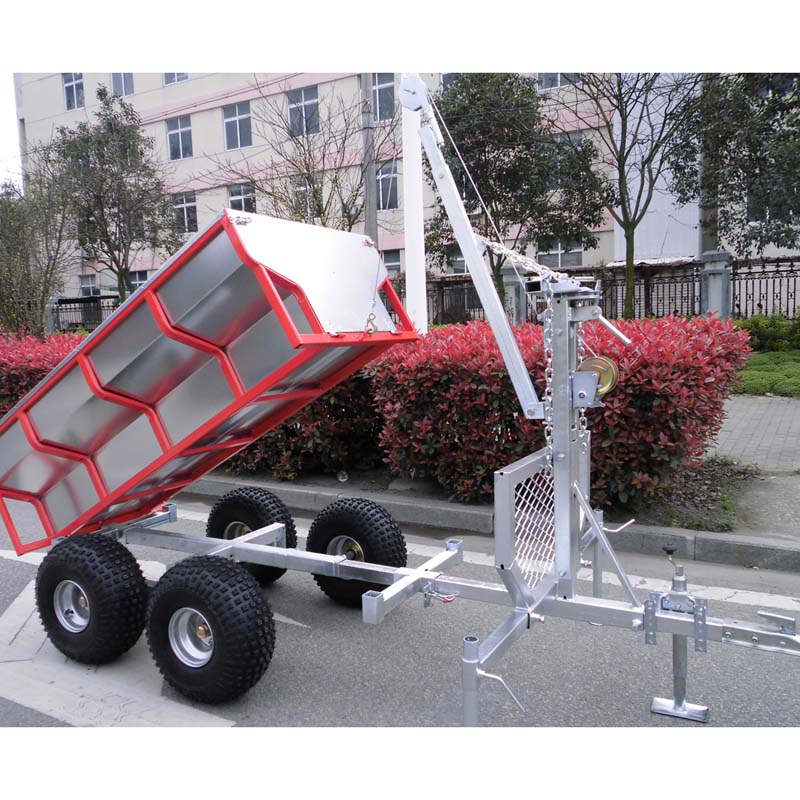

With the box/platform on the forest trailer, trailer is ready for dirt, rocks, firewood, logs, wild game, luggage and more.
Also you could use with your ATV,UTV or garden tractor to take the work out of lifting, dumping, and hauling.

Easily convert between dump box trailers and log trailers.


Key Feature:

Removable platform/box
2 trailer in 1: Dump box trailer use & Log/timber trailer use
Crane/ side support/ jack/ winch optional
Adjustable arms available to be locked in place you want
Winch dump
Heavy Duty Frame Construction
Box Liner
Rotating Boom Lift
Log support extension

The Specification About Forest Trailer

Model No.: XTM-OT-02
Material: Q235
Box Size: 2000x1020/520x530mm
Box Volume: 0.28m³
Draw Bar Length: 850mm
Draw Bar Material: 60mm×60mm×3.5mm
Box Material: 1.5mm galvanized sheet
Net Weight: 240kgs
Load Capacity: 1000kg
Wagon load: 800kg
Tyre: 22×11-8(optional)
Surface Finish: Powder Coating (colors optional), plating or galvanizing
Coupler: ø50mm, 2000kg
Packing: Bulk or iron frame, single cardboard packaging
Container Loading: Individual package: 40pcs/40HQ, 40pcs/40GP, 20pcs/20FT
Warranty Time: 12 months(not including tire)
Lead Time: 20-30 days after deposit
