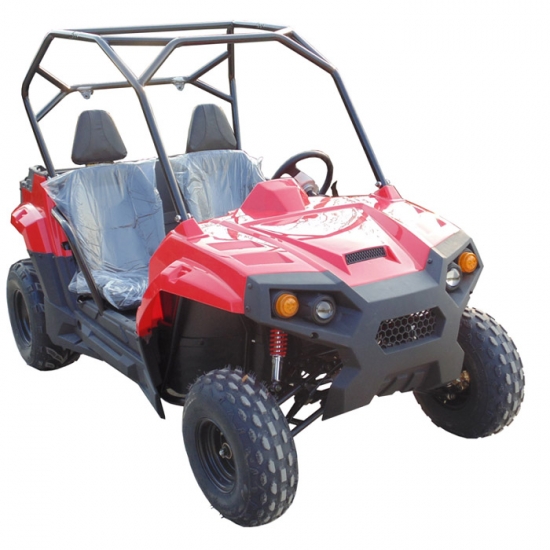

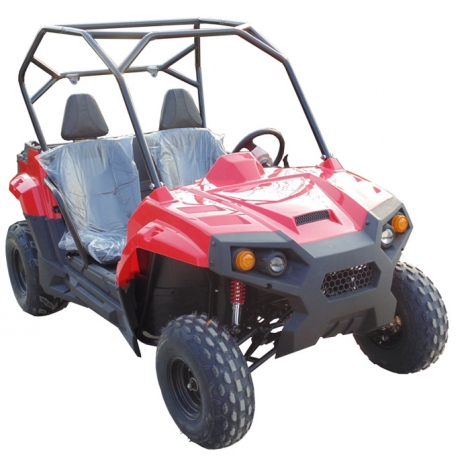

150cc Factory Price Small Side By Side UTV

XTM U150-C small side by side utv is designed for older youth or adult. This UTV is perfect for any off-road fun riding.

This small side by side utv is powered by a reliable, electric start 4-stroke engine, automatic CVT transmission and chain driven dual rear wheel drive. even has an adjustable steering column and reverse!

With the Challenger UTV 150cc, the trails have never been this safe and fun.
there's a full upper brush guard complete with sunshade canopy for all day riding, side protection rails with heavy-duty nylon safety nets and dual seats with seat harnesses to help keep kids safe while riding.

Comfort and safety are the key benefits to the XTM small side by side utv you can’t forget the large storage box, large enough for a cooler and all your camping gear!

Key features:

Full automatic CVT transmission with reverse
Braking is handled by dual hydraulic disc brakes.
Turn key electric start Rack & pinion steering
Adjustable driver's seat
Independent Double A-Arm front Suspension
Standard Safety netting 3 point seat-belt harness system for driver and passenger

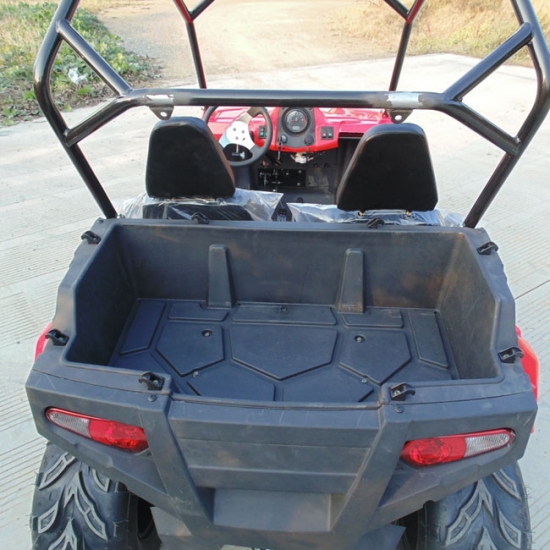

Rear cargo box with tie down points
Dual rear brake lights with signal light feature

The Specification About small side by side utv

DEMENSIONS

Overall Length: 2480mm

Overall Width: 1220mm

Overall Height: 1530mm

Wheelbase: 1830mm

Front Track: 1100mm

Rear Track: 960mm

Ground Clearance: 160mm

ENGIGNE

Type: Forced air-cooled,4-Stroke

Engine capacity: 150cc

Bore/Stroke: 57.4mmx57.8mm

Displacement: 149.6cm3

Corrected compression ratio: 9.2:1

Carburetor: PD24J

Output power: 7.4Kw/7500rpm

Maximum torque: 13/5500foot1bs/r/min

Starting: Electric

Ignition: C.D.I

Lubrication: Force&Splash

Transmission: Automatic(C.V.T system)

Spark plug: C7HSA(NGK)

Plug gap: 0.6-0.7mm

Fuel type: RQ90(unleaded)

Lubricate oil: SAE-10W/40

CAPACITIES

Maximum load: Double Seats/400Ibs

Fuel tank: 1.75Gal

Engine oil: 30Oz

Starting: <5s

Climbing: 20 -25

Battery: 12V 10AH

Head light: 12V 35W/35W

Tail light: 12V 21W/5W

Fuse: 10A

CHASSIS

Front ,Rear brake: Hydraulic disc,left foot control

Front tire: 22x7-8

Rear tire: 22x10-10

Front suspension: Independent Dual A-Arm

Rear suspension: Swing Arm/Double Oil Damped Shock

Restraint System: Dual4-point Harness

Final Drive Chain: (KMC)O-Ring Chain

TIRE PRESSURE

Front: 147kpa 1.5kg/cm2 21.3psi

Rear: 196kpa 2.0kg/cm2 28.4psi

WEIGHT

Net Weight: 240KGS
